vélo électrique AC-Emotion Integral cadre droit
  • vélo électrique AC-Emotion Integral cadre droit

Integral MaxDrive

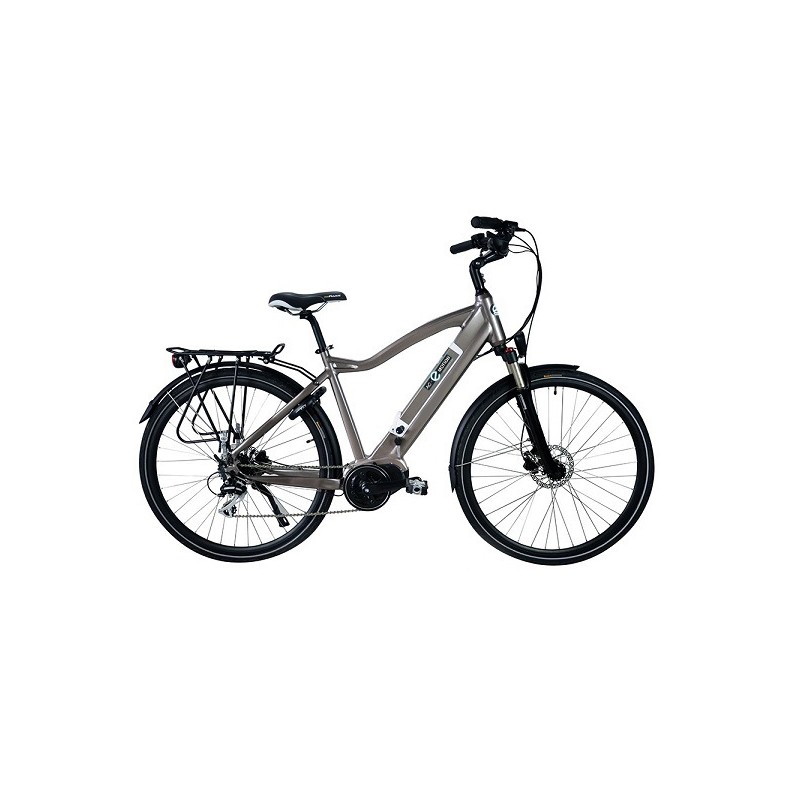

This electric bicycle with pedal drive has a good equipment and workmanship. In addition, it is easy to use: Its 3 levels of support (coupled with a 7-speed Shimano rear derailleur) ensure dynamic riding. Its battery offers a range of up to 70 km.

Technical data of the Integral electric bicycle right frame

Electrical part

Pressure sensor assistance system

Mid drive motor

36V 10.4Ah lithium ion battery 370Wh.

Maximum speed with support: 25km/h

Range up to 70km

Mechanical part

28" tyres

Front disc brake (hydraulically actuated)

Rear disc brake (hydraulically operated)

Shimano 7-speed manual transmission

Aluminium monotube frame

telescopic fork

Weight: 21 kg

Maximum load: 120 kg

Standard equipment: comfort seat, front and rear fenders, bell, Spanninga front and rear lights (LED), lever handles

Warranty

Frame: 10 years

Parts (without wear): 1 year

Engine: 3 years

Batteries: 3 years



IntegralMaxDrive
